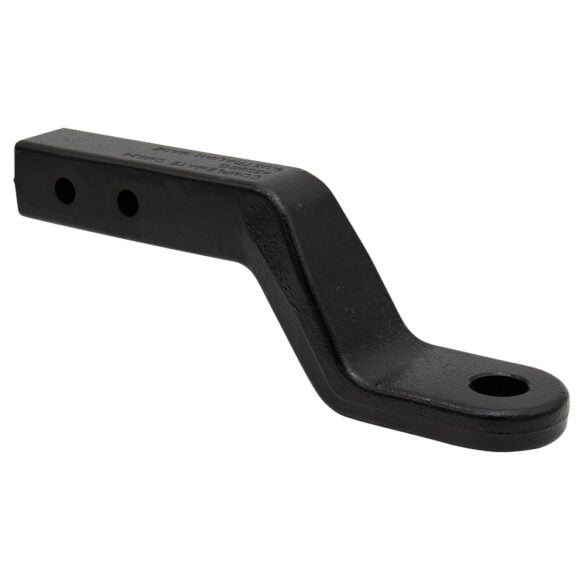

Couplemate 70mm Towbar Receiver Hitch 4500kg

70mm Tow Bar Receiver | Heavy Duty | Suits 70mm Ball

Introducing the best-selling heavy-duty tow bar: the cast tow bar receiver, perfectly suited for a 70mm tow ball.

For added versatility, it can also be used with the Cruisemaster DO45 tow pin.

You can trust the quality and durability of our 70mm receiver hitches, which are expertly cast, machined, and tested right here in Australia.

Product Specifications

• Material: Cast Ductile Iron (500/7)
• Maximum Capacity: 4.5t
• Shank hole: 32mm
• Does not come with a 70mm tow ball.

This product also suits shank size for 2 5/16" Tow Balls (American-size).

CM523 | 50mm Drop Measurements

Key measurements:

• Total Length
  • 340mm
• Centre Hole of the tow ball to the pin centre holes -
  • 206mm
  • 256mm
• From the hitch pinhole to the drop
  • 65mm
  • 115mm

CM524 | 100mm Drop Measurements

Key measurements:

• Total Length
  • 375mm
• Centre Hole of the tow ball to the pin centre holes -
  • 241mm
  • 291mm
