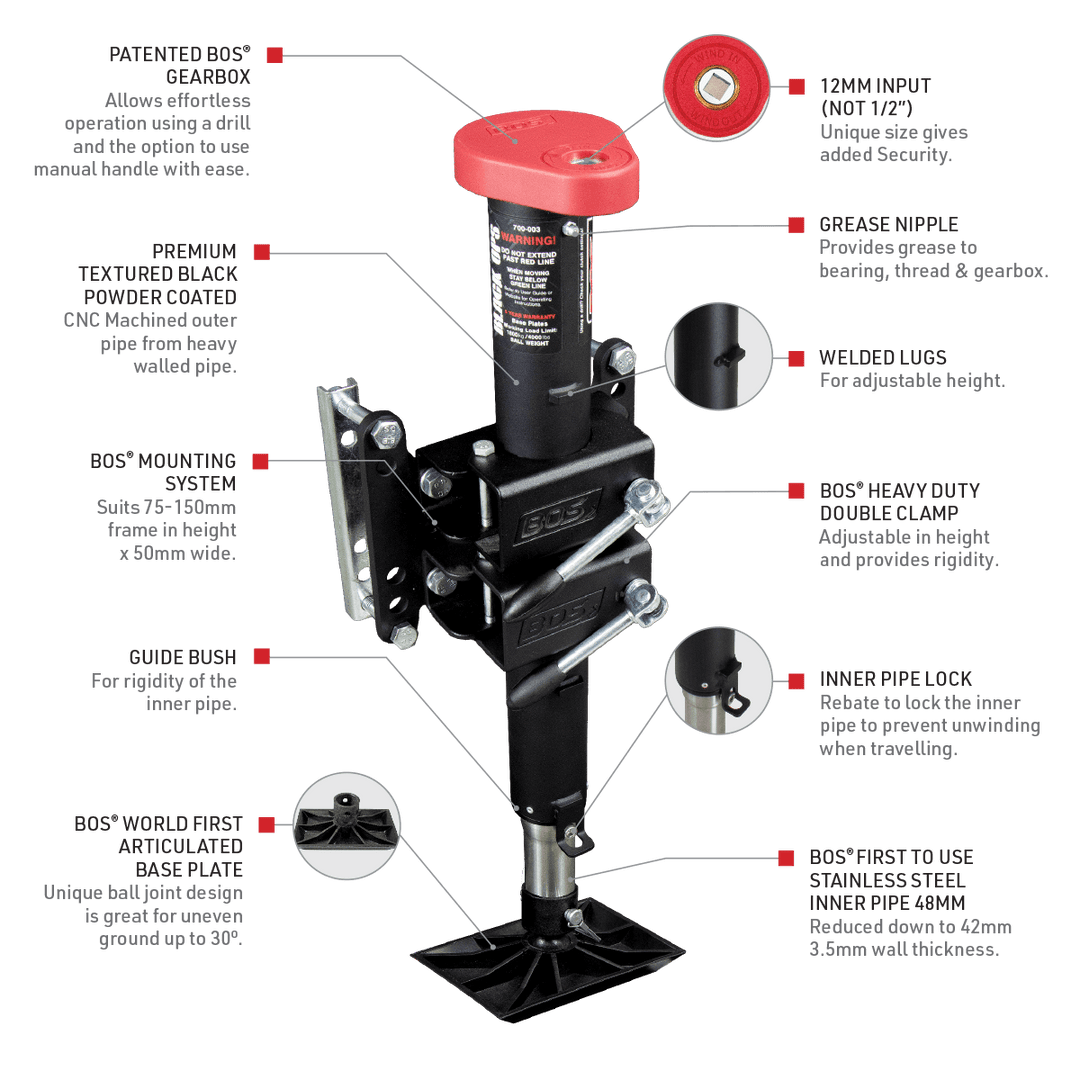

60MM DIAMETER

• Ideal for crowded draw bars where space is limited.
• BOS® heavy duty double clamp is adjustable, allowing you to gain extra height if required.
• Patented BOS® Gearbox features a unique 12mm drive set for added security and provides effortless operation with a cordless drill or manual handle as a backup.
• LMATS Tested up to 1800kg in a rigid clamp setup.
• 355mm Extended travel.
• Unit can be left on while traveling, locking it in with medium clutch setting and the BOS® traveling strap.
• Will fit Draw Bars (chassis) from 75-150mm (4”-6”) High x 50mm (2’’) Wide.
• The articulated base plate kit will adjust to uneven ground up to 30º and is great if you have no need for a wheel.
• 120mm Pipe extension when extra height is needed.

KIT INCLUDES:

	010-194   Double Clamp 60mm		010-033   Mounting Kit U-Bracket & Bolts
	010-062   Articulated Swivel Base Plate		020-003   Manual Handle 12mm
	020-007   12mm Drill Drive Piece		020-018   2x Quick Release Pin
	370-STRAP   Travel Strap		020-037   Jockey Weather Cover
	010-035   Stubby Can Cooler		010-036   Stubby Bottle Cooler
	020-026   Stainless Steel Extension 120mm
